STAGING STRUCTURES

We have seven outdoor stage structures in stock — check them out below.

For more details on pricing and hiring process please download our Hire Catalogue.

King Sound Reinforcement 4.5m x 3.5m stage



Affectionately known as the 'pub' stage as it is often used in pub car park type events. This small stage is also great for product launches, light switch-ons or as a FOH tower.

Build time:  2.5 hours. Requires:  access for 3.5 tonne van Comes with:  One set of steps.

features >


  • Dimensions: W: 4.5m | D: 3.5m | H: 3.0m
  • Max loading: 350 kg UDL
  • Build time: 2-3 hrs
  • Crew: 2
  • Walls: solid blackout back and side walls
  • Treads & Steps: 1 set of stage steps provided
  • Handrails: can be provided for 3 sides if required
  • Ramps: van loading ramp is available on request; disabled access is available on request
  • Site requirements:
    Vehicle access for 3.5 tonne LWB Van. Level build site.
    Public safe 6m x 5m build area
  • Ballast required: ballast included in the price is fixing for soil, where there is unrestricted use of 800mm long fixings. Concrete or water available on request
  • Stage platforms: 4m x 3m overall performance space made up of 2m x 1m Alustage panels on height adjustable legs. Height of the platform is 0.6m



King Sound Reinforcement 6m x 4m stage



A popular choice for smaller events, our 6m x 4m inflatable stage rigs quickly and creates good visual impact.

Build time:  2 hours.                               Requires:  constant 16A power.                   Comes with:  a UPS to guard against power outages. One set of steps.

features >


  • Dimensions: W: 6m | D: 4m | H: 4.5m
  • Max loading: 0 kg UDL
  • Build time: 2-3 hrs
  • Crew: 4
  • Walls: Inflatable side wall
  • Treads & Steps: 1 set of stage steps provided
  • Handrails: can be provided for 3 sides if required
  • Ramps: truck loading ramp is available on request; disabled access is available on request
  • Site requirements:
    Vehicle access for 3.5 tonne Van.
    Level build site.
    Public safe 8m x 6m build area
  • Ballast required: ballast included in the price is fixing for soil, where there is unrestricted use of 800mm long fixings. Concrete or water available on request
  • Stage platforms: 5.4m x 3.6m overall performance space made up of 8ft x 4ft Alustage panels on height adjustable legs. Height of the platform is 0.8m

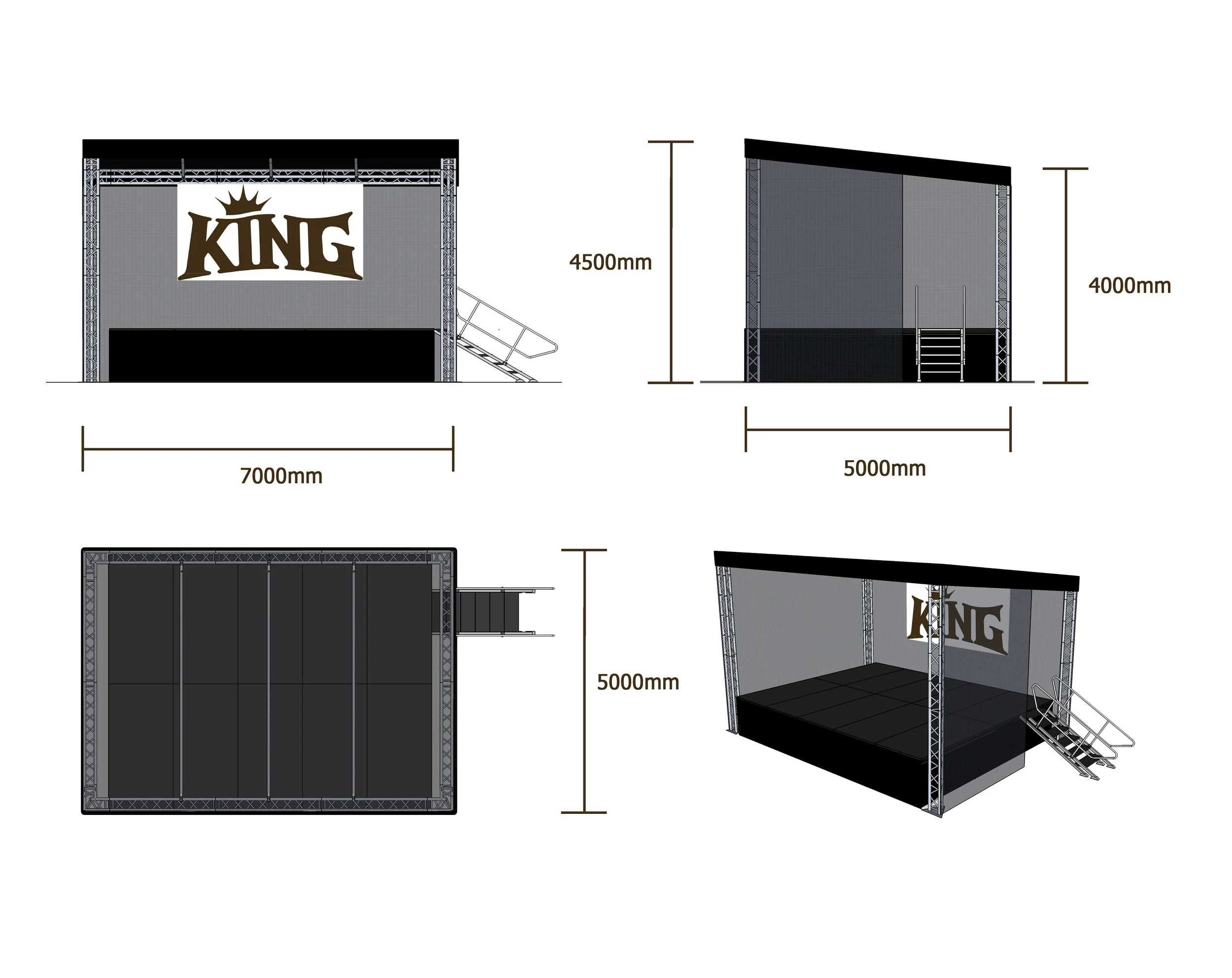

King Sound Reinforcement 7m x 5m truss stage



Very popular for smaller events and quick to build, this stage is still big enough for an 8 piece band.

Build time:  4 hours                               Requires:  access for 7.5 tonne lorry           Comes with:  one set of steps.

features >


  • Dimensions: W: 7m | D: 5m | H: 4.5m
  • Max loading: 750 kg UDL
  • Build time: 3-4 hrs
  • Crew: 4
  • Walls: mesh back and side walls
  • Treads & Steps: 1 set of stage steps provided
  • Handrails: can be provided for 3 sides if required
  • Ramps: truck loading ramp is available on request; disabled access is available on request
  • Site requirements:
    Vehicle access for 7.5 tonne Truck.
    Level build site.
    Public safe 9m x 8m build area
  • Ballast required: ballast included in the price is fixing for soil, where there is unrestricted use of 800mm long fixings. Concrete or water available on request
  • Stage platforms: 6.1m x 4.88m overall performance space made up of 2m x 1m Alustage panels on height adjustable legs. Height of the platform is 0.8m



King Sound Reinforcement 8m x 6m Milos Stage



Our Milos 8m x 6m stage is ideal for medium sized events. Perfect for a community festival.

Build time:  4 hours                                             Requires:  access for 7.5 tonne lorry               Comes with:  one set of steps.

features >


  • Dimensions: W: 8m | D: 6m | H: 5m
  • Max loading: 750 kg UDL
  • Build time: 4-5 hrs
  • Crew: 4
  • Walls: mesh back and side walls
  • Treads & Steps: 1 set of stage steps provided
  • Handrails: can be provided for 3 sides if required
  • Ramps: truck loading ramp is available on request; disabled access is available on request
  • Site requirements:
    Vehicle access for 7.5 tonne Truck.
    Level build site.
    Public safe 9m x 8m build area
  • Ballast required: ballast included in the price is fixing for soil, where there is unrestricted use of 800mm long fixings. Concrete or water available on request
  • Stage platforms: 8m x 5.5m overall performance space made up of 2m x 1m Alustage panels on height adjustable legs. Height of the platform is 0.8m



King Sound Reinforcement 8x6m Milos stage + wings



The additional wings increase the frontage of the 8m x 6m stage to over 12m. Ideal to hide PA stacks and provide valuable branding space for your event.

Build time:  4.5 hrs                                 Requires:  access for 7.5 tonne lorry         Comes with:  one set of steps, non branded scrims.

features >


  • Dimensions: W: 8m | D: 6m | H: 5m
  • Max loading: 750 kg UDL
  • Build time: 4-5 hrs
  • Crew: 4
  • Walls: mesh back and side walls
  • Treads & Steps: 1 set of stage steps provided
  • Handrails: can be provided for 3 sides if required
  • Ramps: truck loading ramp is available on request; disabled access is available on request
  • Site requirements:
    Vehicle access for 7.5 tonne Truck.
    Level build site.
    Public safe 9m x 8m build area
  • Ballast required: ballast included in the price is fixing for soil, where there is unrestricted use of 800mm long fixings. Concrete or water available on request
  • Stage platforms: 8m x 5.5m overall performance space made up of 2m x 1m Alustage panels on height adjustable legs. Height of the platform is 0.8m

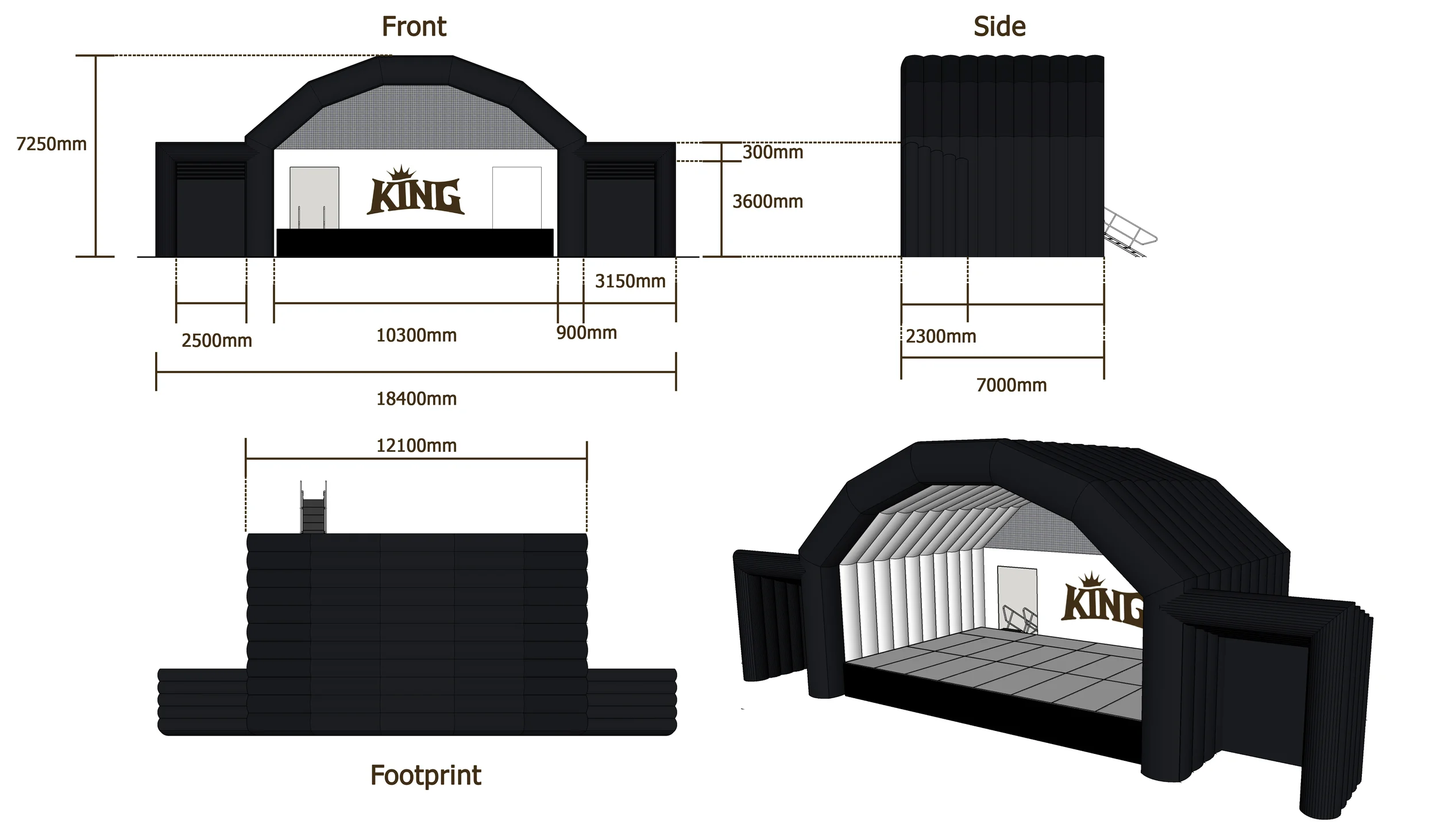

King Sound Reinforcement 10m x 8m Inflatable stage



With a footprint of 18m and 7m in height, this bad boy is popular for larger events.

Build time:  3.5 hours.                               Requires:  constant 16A power.                   Comes with:  a UPS to guard against power outages. Two sets of steps.

features >


  • Dimensions: W: 18.4m | D: 7m | H: 7m
  • Build time: 4-5 hrs
  • Crew: 6
  • Walls: black PVC inflatable structure
  • Treads & Steps: 1 set of stage steps provided
  • Handrails: can be provided for 3 sides if required
  • Ramps: truck loading ramp is available on request; disabled access is available on request
  • Site requirements:
    Vehicle access for 3.5 tonne LWB van with trailer.
    Level build site.
    Public safe 20m x 10m build area
  • Ballast required: ballast included in the price is fixing for soil, where there is unrestricted use of 800mm long fixings. Concrete or water available on request
  • Stage platforms: 24' x 20' overall performance space made up of 8' x 4' Alustage panels on height adjustable legs. Height of the platform is 1.0( 1 )
    32' x 20' overall performance space made up of 8' x 4' Alustage panels on height adjustable legs. Height of the platform is 1.0m( 2 )
  • Power requirements: 240v | 16a Power supply



King Sound Reinforcement 15m Orbit stage
